Overlapping automatic doorsdoor operator
door features
Unique combination of high strength T6 aluminum alloy support beam
Special track and pulley block design, to ensure ultra-quiet operation
Rail slide inlaid with the middle of high-quality plastic strip, to absorb the vibration and noise running, running quiet and quiet
Overlapping between the door by the pulley linkage, stable and reliable operation
Two-way meet resistance automatic rebound function, safety performance is more prominent
Door by the special aluminum frame structure and tempered glass or 6 + 1.52pvb + 6 laminated glass composition
Equipped with hubs can be integrated into the wisdom of the hospital channel centralized control management system
parameter
- Door type single open / double open / three open
- Open the way microwave induction
- Security-assisted infrared anti-clip security light
- Door leaf weight ≤ 2 * 150kg / ≤ 4 * 100kg / 6 * 80kg
- Open the door speed 300mm / s ~ 550mm / s (adjustable)
- Closed door speed 300mm / s ~ 550mm / s (adjustable)
- Opening time 0 ~ 10s (adjustable)
- Closing force F> 100N
- Manual thrust <100N
- Power consumption of the whole machine <100W

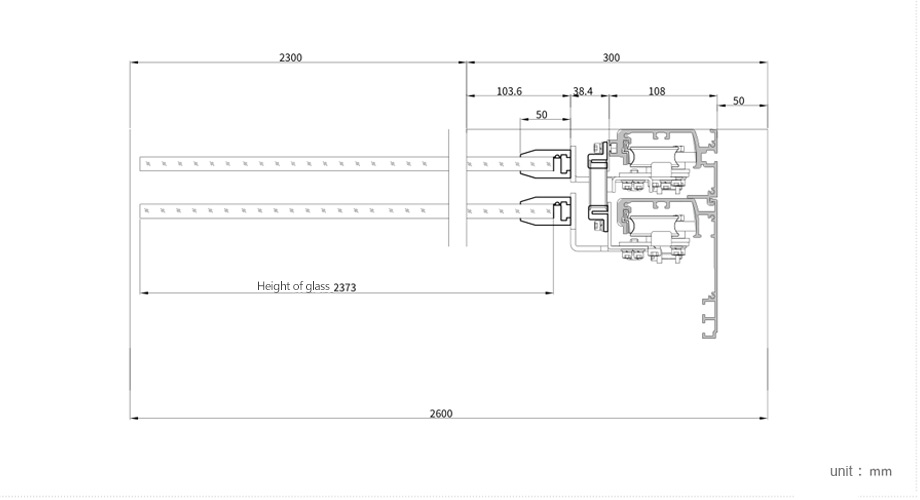

structural view
