Operating room series
Double open manual doordoor operator
door features
The door body is composed of a special aluminum frame structure and a door panel
Can be used aluminum / stainless steel and other forms of door openings, and is equipped with high-strength seal to ensure good sealing
The underside of door leaf is equipped with sunken sealing strip to meet the requirements of cleanliness
The door liner is made of aluminum honeycomb / polyurethane foam, strong, thick, flat, to ensure good air tightness and sound insulation.
Door can be used galvanized steel / aluminum / large flat stainless steel plate
Can be used double-plane observation window or aluminum round window
Optional high-quality door locks, door closers, floor springs, hinges and other hardware

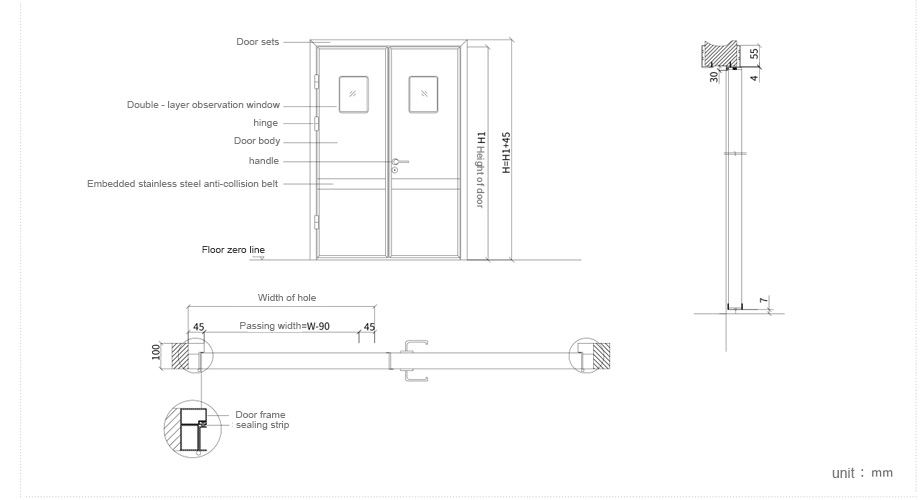

parameter
- Door weight ≤ 150kg
- Door width 1100 ~ 1600mm
- Door height 2100 ~ 2200 mm
- The opening angle is 0 ~ 170 °
