Intensive care unit series
ICU / CCU automatic doorsFor intensive care unit, intensive care unit, recovery room, senior wards, laboratories and other places, to facilitate the health care of patients with obstacle-free observation.
door operator
The controller is designed according to the medical electrical safety requirements. The motor adopts Japanese top spiral bevel gear technology, mute, energy saving, Efficient, long life
Unique combination of high strength T6 aluminum alloy support beam
Special track and pulley block design, to ensure ultra-quiet operation
White dust-proof timing belt for improved clean performance
Integrated rail, chassis cover, direct wall surface mounting, installation is simple and quick, but also can be embedded, and the wall Body for the same plane
According to different places, different needs, optional infrared sensor, foot sensor, hand sensor, password reader, fingerprint, visual Intercom and other control methods
Can be integrated into the wisdom of hospital access control management system
door features
Door by the special aluminum frame structure and large flat glass composition
The door can be a large flat glass or 6 +1.52PVB +6 laminated glass tempered glass door frame with aluminum alloy or outside Package stainless steel frame, the atmosphere, transparent, beautiful, easy to care for the patient's barrier-free observation
Reasonable horizontal design, effectively avoid the beds, equipment and other objects through the direct collision with the glass, more secure
User-friendly embedded dark handle handle design, power can also be manually open easily
parameter
- Door weight ≤ 150kg
- Open the door speed 250 ~ 550mm / s (adjustable)
- Closed door speed 250 ~ 550mm / s (adjustable)
- Opening time 0 ~ 20s (adjustable)
- Closing force F> 70N
- Manual thrust <80N
- Machine power consumption <150W

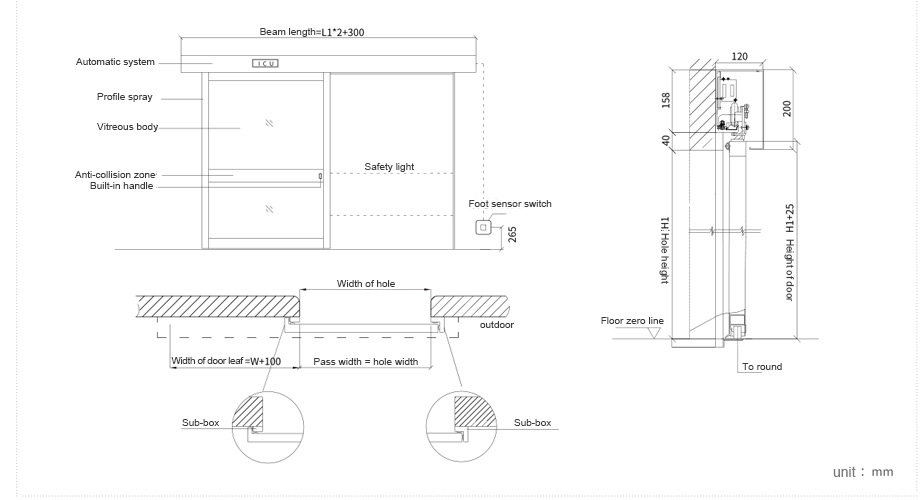

structural view
