Anti-radiation series

Radiation manually open the door

door operator

door features

Door and door frames lined with lead plate, lead equivalent of 2-4mmPa, can be shielded X-ray, to prevent a variety of harmful rays leak Ni people Body injury, in line with diagnostic X-ray protection requirements

The door body is composed of a special aluminum frame structure and a door panel

Can be used aluminum / stainless steel and other forms of door openings, with non-toxic silicone seal, to ensure good sealing

The underside of door leaf is equipped with sunken sealing strip to meet the requirements of cleanliness

The door liner is made of aluminum honeycomb / polyurethane foam, strong, thick, flat, to ensure good air tightness and sound insulation.

Door can be used galvanized steel / aluminum / large flat stainless steel plate

10mm lead glass windows

Optional high-quality door locks, door closers, springs and other hardware

Switch light, nice

parameter

  • Door weight ≤ 150kg
  • Door width of 700 ~ 1000mm
  • Door height 2100 ~ 2200mm
  • The opening angle is 0 ~ 170 °

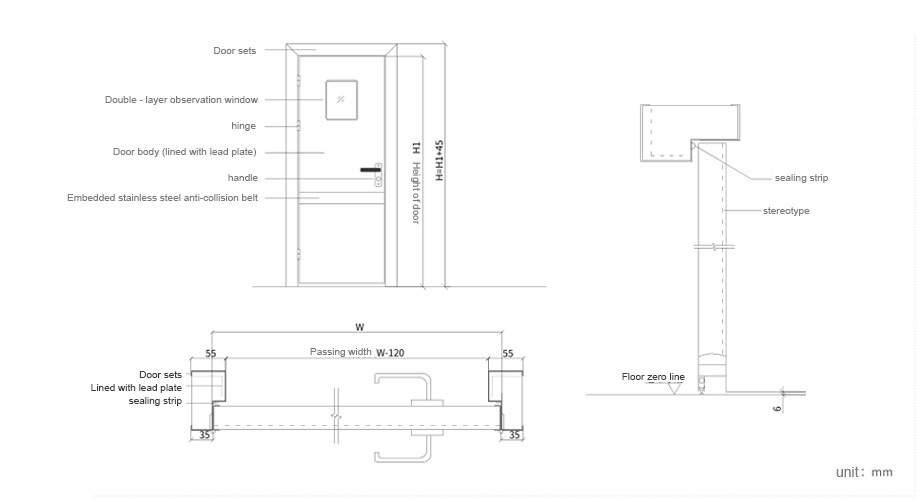

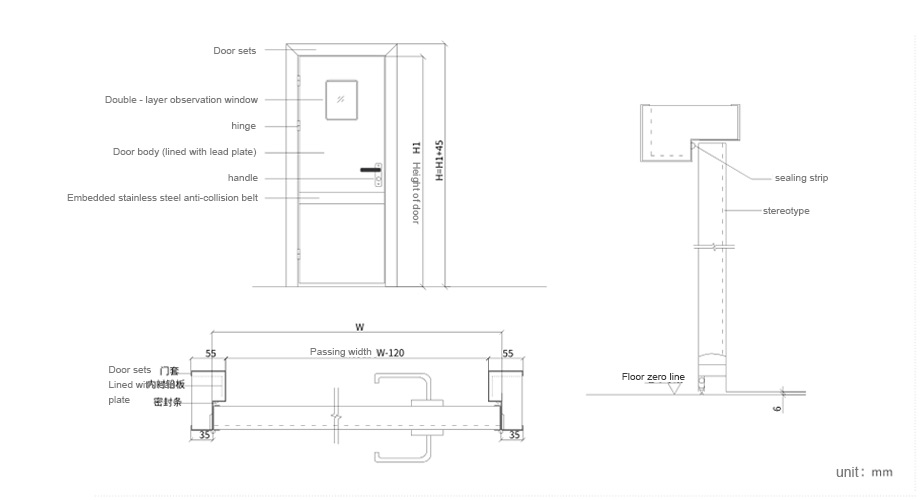

structural view
