Channel series
Open the automatic doorsdoor operator
door features
According to different places, you can choose slide-style, folding arm or built-in
The door machine system uses the microcomputerized controller, the intelligent control movement, the opening angle may establish arbitrarily
Can realize the interlocking function between door and door
The door body is composed of a special aluminum frame structure and a door panel
The door liner is made of aluminum honeycomb / polyurethane foam, strong, thick, flat, to ensure good air tightness and sound insulation.
Door can be used galvanized steel / aluminum / large flat stainless steel plate
A flat rounded viewing window or aluminum window can be used
According to the requirements, choose a variety of ways to open, such as: foot sensor, hand sensor, password reader, fingerprints, sensors, remote control, video intercom, etc.
Can be integrated into the wisdom of hospital access control management system
parameter
- Door leaf weight ≤ 100kg
- Door width ≤ 1200mm
- Open the foot sensor / hand sensor
- Safety - aided infrared - proof safety light / safety light curtain
- Open the door speed 250 ~ 450mm / s (adjustable)
- Closed door speed 250 ~ 450mm / s (adjustable)
- Opening angle 70 ~ 150 ° (adjustable)
- On time 3 ~ 7s (adjustable)
- Open stop time 0 ~ 20s (adjustable)
- Manual Thrust (Power Off) <30N M
- achine power consumption <50W

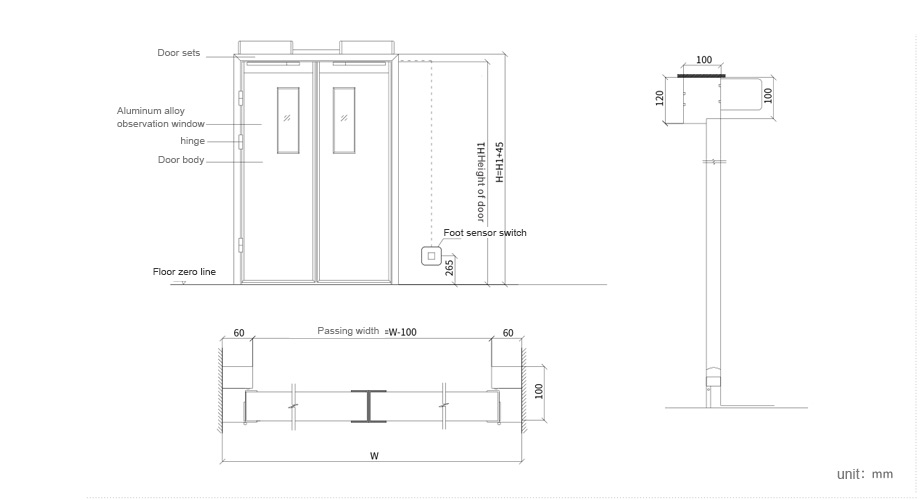

structural view
