Operating room series

Plug-in airtight automatic doors

A very practical product, integrated track, chassis cover, direct wall surface mount, easy installation and quick.

door operator

Controller in accordance with medical electrical safety requirements, the motor using Japan's top spiral bevel gear technology, mute, Energy saving, high efficiency, long life

Unique combination of high strength T6 aluminum alloy support beam

Special track and pulley block design, to ensure ultra-quiet operation

White dust-proof timing belt for improved clean performance

Special structure design and close the tightness technology to ensure good air tightness Hermetic performance to meet national standards (GB / T7106-2008), the eighth grade standard (the highest grade)

Optional foot sensor or feel should be open

Can be integrated into the wisdom of hospital access control management system

door features

The door body is composed of a special aluminum frame structure and a door panel

Door around the installation of non-toxic silicone seal to meet the clean requirements

The door liner is made of aluminum honeycomb / polyurethane foam, strong, thick, flat, to ensure good air tightness and sound insulation.

Door can be used galvanized steel / aluminum / large flat stainless steel plate

Two - layer plane fillet observation window

Optional embedded handle / round tube handle

parameter

  • Open the foot sensor / hand sensor
  • Security-assisted infrared anti-clip security light
  • Door weight ≤ 150kg
  • Door width DW = 808 ~ 1680mm
  • Open the door speed 250 ~ 550mm / s (adjustable)
  • Closed door speed 250 ~ 550mm / s (adjustable)
  • Opening time 0 ~ 20s (adjustable)
  • Closing force F> 70N
  • Manual thrust <80N
  • Power consumption of the whole machine <120W

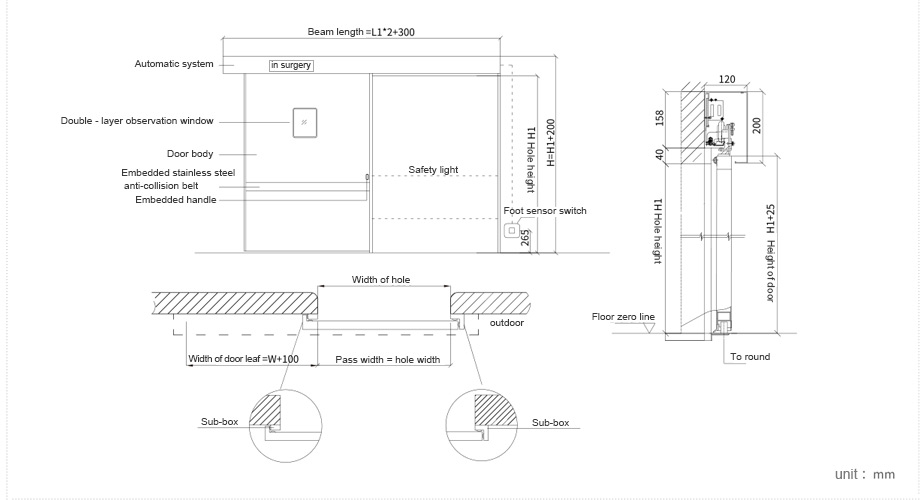

structural view
