Operating room series
European air tight automatic doorsThe combination of the essence of European design, powerful, high performance, security, mute, automatic doors in the field of classic.
door operator
Controller uses a unique advanced circuit design, the motor using the world's top German imports Deenke motor, running quiet, efficient
Unique combination of high strength T6 aluminum alloy support beam
Special track and pulley block design, to ensure ultra-quiet operation
White dust-proof timing belt for improved clean performance
Special structural design, door operation, the door sinking the maximum 15mm, the pressure 10mm, airtight performance to meet national standards (GB / T7106-2008), the eighth grade standard (the highest grade)
Optional foot sensor or feel should be open
Integrated track, chassis cover, direct wall surface mount, easy installation and quick
Can be integrated into the wisdom of hospital access control management system
door features
The door body is composed of a special aluminum frame structure and a door panel
Door around the installation of non-toxic silicone seal to meet the clean requirements
The door liner is made of aluminum honeycomb / polyurethane foam, strong, thick, flat, to ensure good air tightness and sound insulation.
Door can be used galvanized steel / aluminum / large flat stainless steel plate
Two - layer plane fillet observation window
Optional embedded handle / round tube handle
parameter
- Open the foot sensor / hand sensor
- Security-assisted infrared anti-clip security light
- Door leaf weight ≤ 180kg
- Open the door speed 250 ~ 500mm / s (adjustable)
- Closed door speed 250 ~ 500mm / s (adjustable)
- Opening time 0 ~ 20s (adjustable)
- Closing force F> 70N
- Manual thrust <80N
- Machine power consumption <150W

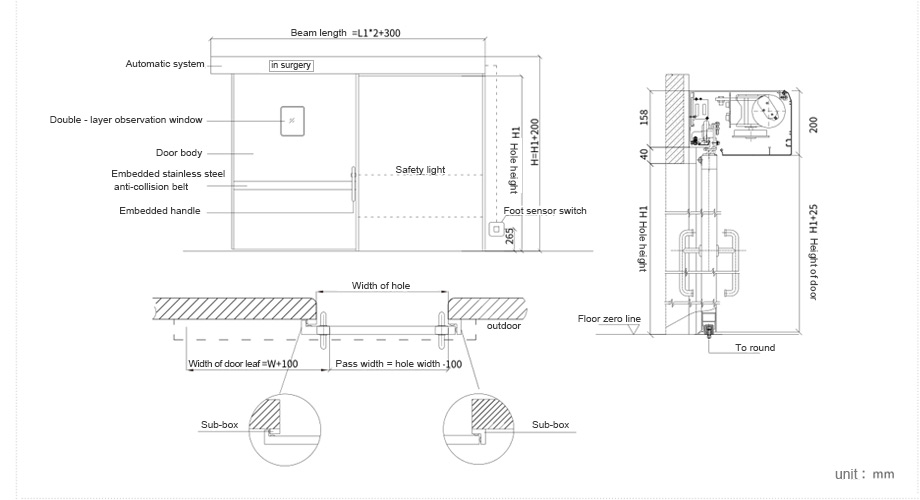

structural view
