Operating room series
All imports of airtight automatic doorsTaiwan's imports of all air-tight automatic doors system, is a powerful, safe, reliable, ultra-quiet operation, high air tightness of the automatic door products.
door operator
High strength T6 aluminum alloy support beam
Special track and pulley block design, to ensure ultra-quiet operation
White dust-proof timing belt for improved clean performance
Special structural design, door operation, the door sinking maximum 8mm, internal pressure 8mm, airtight performance to meet national standards
(GB / T7106-2008), the eighth grade standard (the highest grade)
Optional foot sensor or feel should be open
Integrated track, chassis cover, direct wall surface mount, easy installation and quick
Equipped with hubs can be integrated into the wisdom of the hospital channel centralized control management system
door features
The door body is composed of a special aluminum frame structure and a door panel
Door around the installation of non-toxic silicone seal to meet the clean requirements
The door liner is made of aluminum honeycomb / polyurethane foam, strong, thick, flat, to ensure good air tightness and sound insulation.
Door can be used galvanized steel / aluminum / large flat stainless steel plate
Two - layer plane fillet observation window
Optional embedded handle / round tube handle
parameter
- Open the way: foot sensor / hand sensor
- Security assistance: infrared anti-clip security light
- Weight of door leaf: ≤150kg
- Door width: DW = 808 ~ 1680mm
- Open the door speed: 250 ~ 550mm / s (adjustable)
- Closed door speed: 250 ~ 550mm / s (adjustable)
- Opening hours: 0 ~ 20s (adjustable)
- Closing force F:> 70N
- Manual thrust: <80N
- Power consumption: <120W

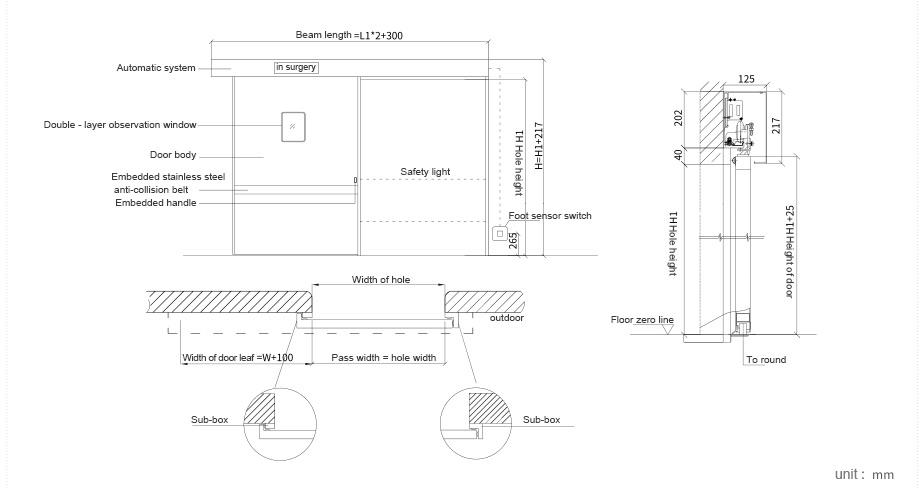

structural view
